Gratings for floors, platforms, shelves, sunshades, stair treads, ventilation ducts and installations, storm water drains and covers.
Forge-welded gratings are welded in each node (flat bar - twisted cross bar), in a way that ensures the preservation of the natural and mechanical characteristics of gratings, after any processing and in any condition. These gratings are characterized by a high stability and a perfect load distribution.
We comply with international standards about industrial gratings.
Bearing bars have height of 20 to 80 mm
Thickness of 2 to 8 mm
Cross bars can be twisted or round
Serrated bearing bars have thickness 2 to 5 mm. Main use: Platforms, shelves, ventilation ducts and installations, storm water drains and covers, walkways, sun shades, stair landings, and many other applications.
Gratings for floors, platforms, shelves, sunshades, stair treads, ventilation ducts and installations, storm water drains and covers.

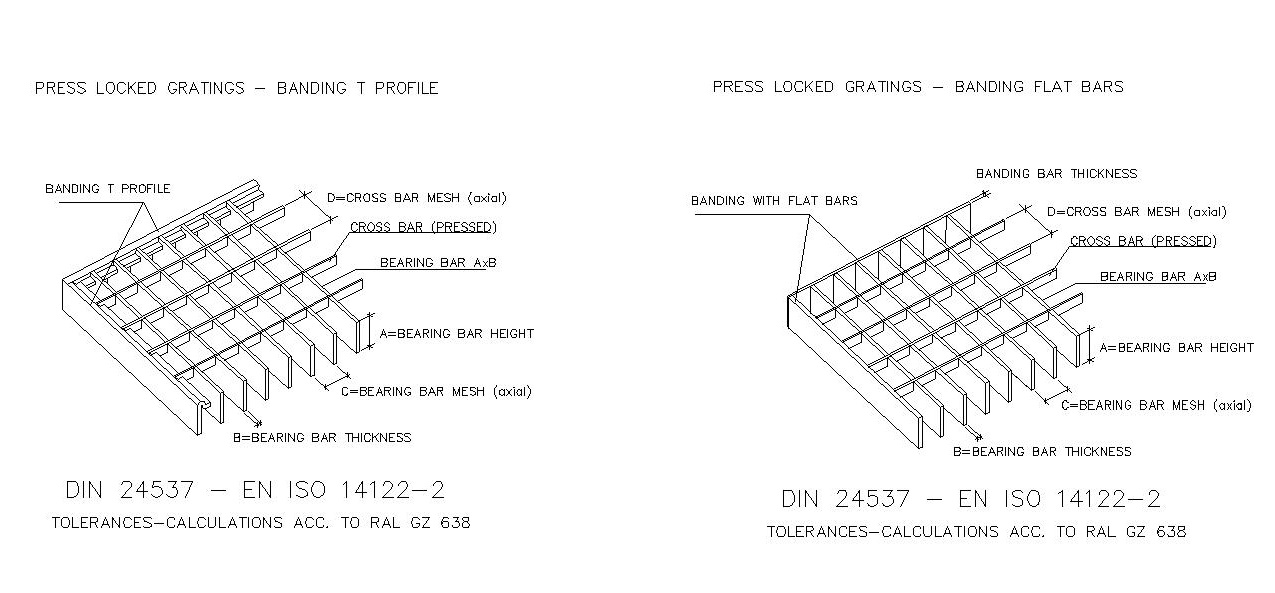

Press-locked gratings are made of bearing bars and cross bars by the method of pressing. This means that the cross bars are pressed and inserted into the notches provided at the top of the longitudinal strips at equal distances, forming rectangular meshes. This method of execution ensures the fast, economical and qualitative production of the gratings without welding knots and offers the possibility to produce very narrow meshes (11.11 x 11.11 mm). In this way we produce the gratings to the final dimensions.
We comply with international standards about industrial gratings.
Bearing bars have height from 20 to 50 mm.
Bearing bars have thickness of 2 & 3 mm.
Cross bars have thickness of 2 & 3 mm.
Serrated bearing bars have thickness of 3 mm for pitch 33x33 mm.
Main use: Platforms, shelves, ventilation ducts and installations, covers for drainage and storm water drains, walkways, sun shades, stair landings, architectural applications and many other applications.
